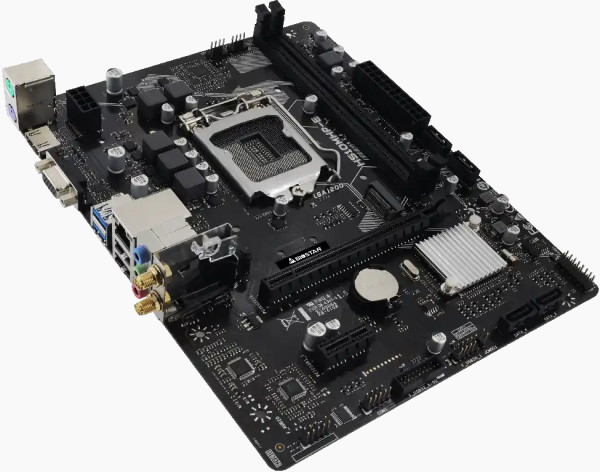

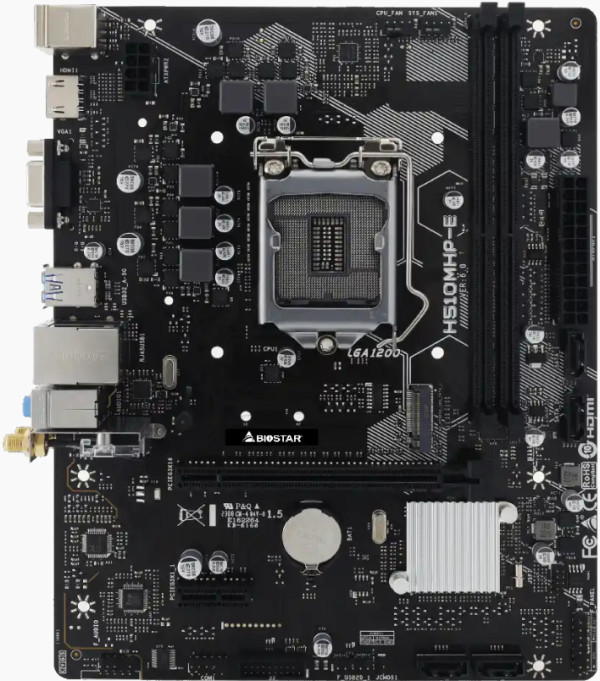

Matična ploča 1200 Biostar H510MHP-E 2.0 VGA/HDMI/M.2

Tip procesora - Chipset Intel H510 - CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors Format ploče - Micro ATX Memorija - Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 - 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory - Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Slotovi za proširenje - 4 x SATA III Connector (6Gb/s) - 1 x M.2 (M Key) Socket: - Supports M.2 Type 2242/ 2260/ 2280 SSD module. - Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD - * When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled. Zvučna kartica - CODEC Realtek ALC887 - 7.1 Channels, High Definition Audio Ostalo - INTEGRATED VIDEO: Supports DX12 - Supports HDCP - LAN: Intel I219V - 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability - USB: 2 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) - 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) - EXPANSION SLOT: 2 x PCIe 3.0 x1 Slot - 1 x PCle 3.0/4.0 x16 Slot - *The PCle 4.0 only depends on Rocket Lake CPUs. - REAR I/O: 1 x PS/2 Keyboard - 1 x PS/2 Mouse - 1 x HDMI Port - 1 x VGA Port - 2 x USB 3.2 (Gen1) Ports - 4 x USB 2.0 Ports - 1 x LAN port - 3 x Audio Jack - INTERNAL I/O: 4 x SATA III Connectors (6Gb/s) - 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) - 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) - 1 x 8-Pin Power Connector - 1 x 24-Pin Power Connector - 1 x CPU Fan Connector - 1 x System Fan Connector - 1 x Front Panel Header - 1 x Front Audio Header - 1 x Clear CMOS Header - 1 x COM Port Header Garancija - 2 godine
