SPECIFICATIONS
KF436C18BB2A/32
32GB 4G x 64-Bit
DDR4-3600 CL18 288-Pin DIMM
FEATURES

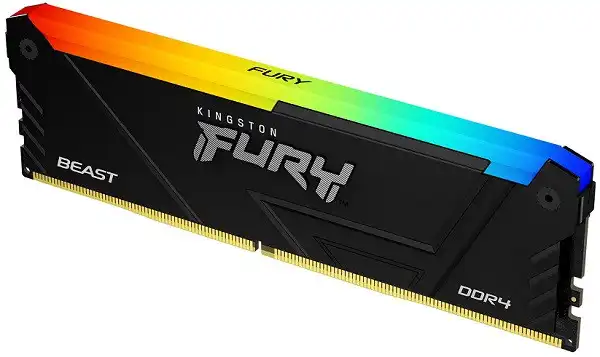

Kingston FURY KF436C18BB2A/32 is a 4G x 64-bit (32GB)
DDR4-3600 CL18 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 2G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 2.0. Each module has been tested to run at
DDR4-3600 at a low latency timing of 18-22-22 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
17 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V - 0
0o
C to +70o
C
-40o
C to +85o
C
