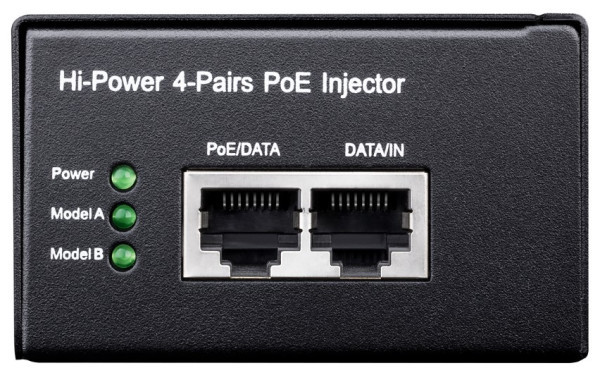

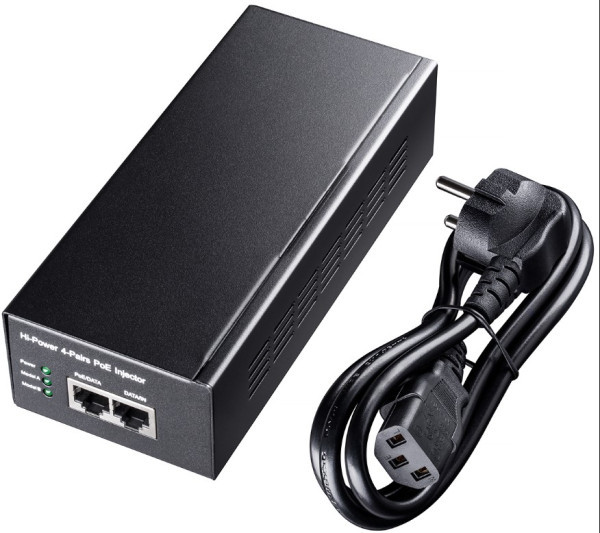

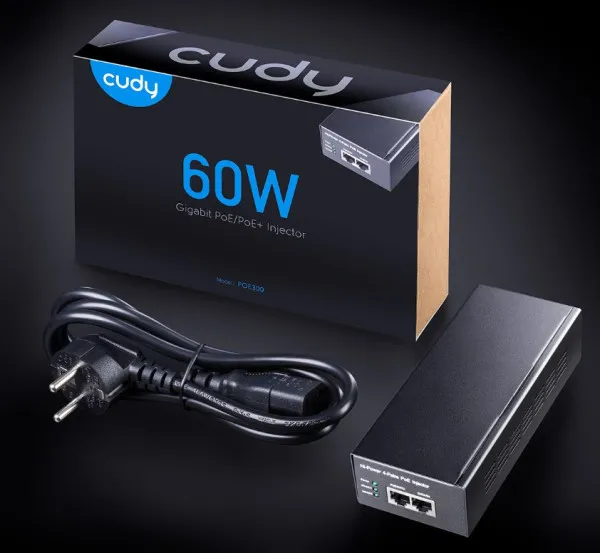

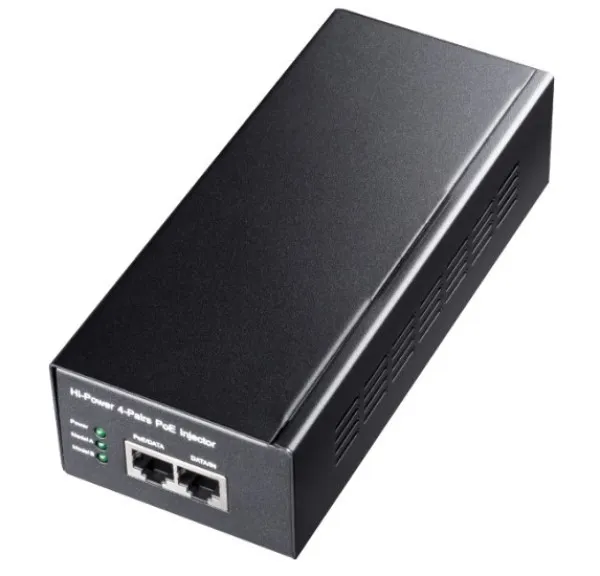

Cudy POE300 60W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard, Data&Power 100 Meters

60W Gigabit PoE+/PoE Injector -Up to 60 watts PoE power supply -1 10/100/1000M Ethernet Input port -1 10/100/1000M PoE Output port -IEEE 802.3at / IEEE 802.3af standard compliant -Plug&play, simple setup with no configuration needed Model POE300 No. of channels 1 Pass Through Data Ratesi 10/100/1000Mbps Power over Ethernet Output Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-), Output Power Voltage: 50Vdc User Port Power: 60W Input Power Requirements AC Input Voltage: 100 to 240 VAC AC Input Current: 0.5A 100-240 VAC AC Frequency: 50 to 60 Hz Dimensions 145mm x 60mm x 40mm Indicators System Indicator: AC Power User Indicator: Channel Power Connectors Shielded RJ-45, EIA 568A and 568B Regulatory Compliance IEEE 802.3af (15.4W) IEEE 802.3at (30W) IEEE802.3at 4Pairs(60W) Environmental Conditions Operating Ambient Temperature:0 to 45c Operating Humidity:Maximum 80%, Non-condensing Storage Temperature:-20 to 70c Storage Humidity:Maximum 80%, Non-condensing
