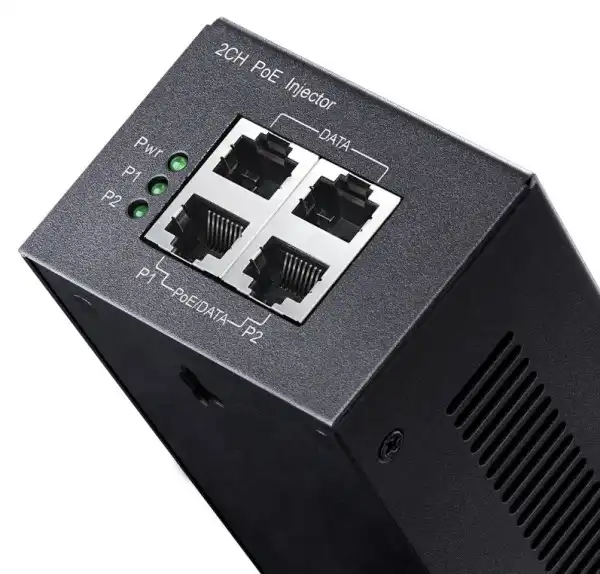

Cudy POE220 2x 30W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard, Data Power 100 Meters, Metal

2-Channel 30W Gigabit PoE+/PoE Injector ? Up to 2 x 30 watts PoE Power Budget ? 2 10/100/1000M Ethernet Input port ? 2 10/100/1000M PoE Output port ? IEEE 802.3at / IEEE 802.3af standard compliant ? Plug&play, simple setup with no configuration needed. Speci?cation Model POE220 No. of channels 2 Pass Through Data Ratesi 10/100/1000Mbps Power over Ethernet Output Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power Voltage: 54VDC User Port Power: 30W max Input Power Requirements AC Input Voltage: 100 to 240 VAC AC Input Current: 0.5A 100-240 VAC AC Frequency: 50 to 60 Hz Dimensions 131mm x 70mm x 40mm Indicators System Indicator: AC Power User Indicator: Channel Power Connectors Shielded RJ-45, EIA 568A and 568B Protection Over current protection Over load protection Over voltage protection Anti-interference protection Environmental Conditions Operating Ambient Temperature:-40 to 40? Operating Humidity: Maximum 85%, Non-condensing Storage Temperature:-40 to 50? Storage Humidity: Maximum 90%, Non-condensing
