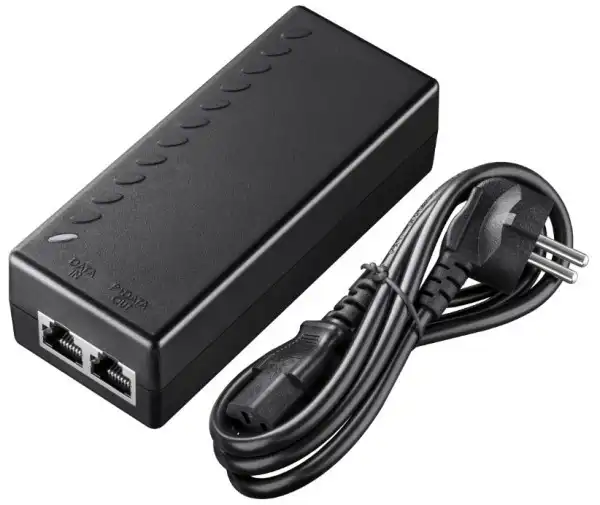

Cudy POE200 30W Gigabit PoE+/PoE Injector, 802.3at/802.3af Standard

30W Gigabit PoE+/PoE Injector -Up to 30W Power Supply -Supports 10/100/1000 Base-T applications -LED indicators power input and PoE output -Internal AC/DC converter no need for external power brick -Easy plug-and-play installation -Muti-protection No. of channels 1 Pass Through Data Ratesi 10/100/1000Mbps Power over Ethernet Output Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power Voltage: 54VDC User Port Power: 30W max Input Power Requirements AC Input Voltage: 100 to 240 VAC AC Input Current: 0.5A 100-240 VAC AC Frequency: 50 to 60 Hz Dimensions 121mm x 50mm x 36mm Indicators System Indicator: AC Power User Indicator: Channel Power Connectors Shielded RJ-45, EIA 568A and 568B Protection Over current protection Over load protection Over voltage protection Anti-interference protection Environmental Conditions Operating Ambient Temperature:-40 to 40? Operating Humidity: Maximum 85%, Non-condensing Storage Temperature:-40 to 50? Storage Humidity: Maximum 90%, Non-condensing
