Cudy AP1300 AC1200 Gigabit Wireless Access Point, Dual Band, 1xGbit WAN/LAN (PoE), AP/Router/RE/WISP

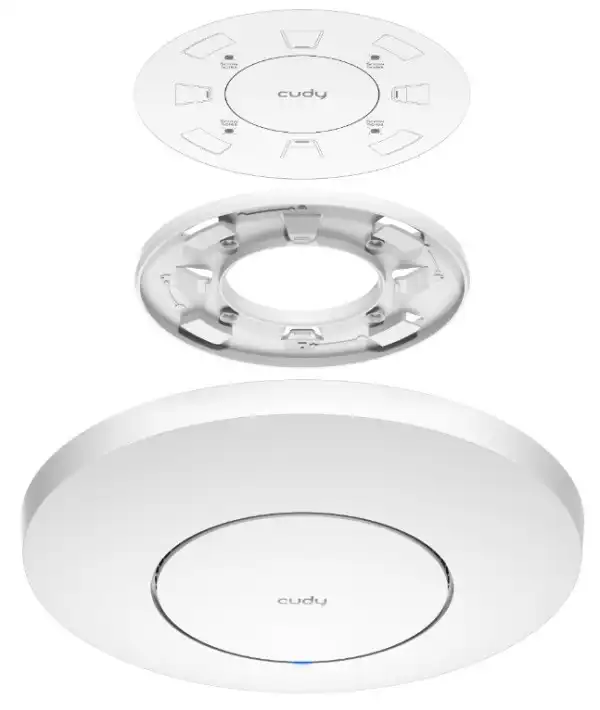

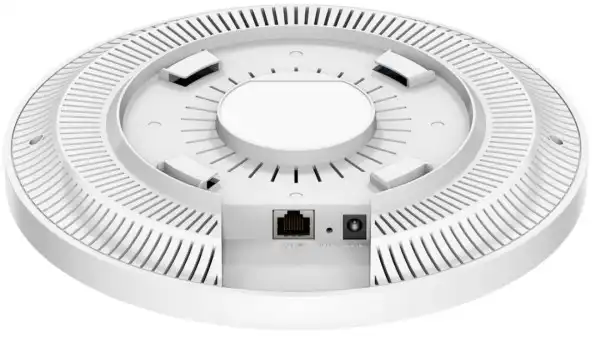

- AC1200 Dual Band Wi-Fi Speed - MT7621DA+MT7613B+MT7603E - 1× Gigabit WAN/LAN (PoE In) - 802.3at/af PoE, Passive PoE, or DC (DC adapter included) - Multi-Mode: AP/Router/RE/WISP - Mesh Connects More Devices MU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices, improving e?ciency and throughput under heavy use. Boosted Coverage Beamforming technology tracks connected devices' directions and boost signal towards them, improves coverage performance. Mesh support (802.11k/v) allows clients to switch between access points seamlessly,ensuring uninterrupted Wi-Fi calling or live streaming when moving around. *Requires a Cudy Wi-Fi router/Mesh unit/VPN router/AC as a gateway with firmware newer than 15.28. CPU: 880 MHz Dual-Core Processor Flash: 16 MB (128 Mbit) DDR: 128 MB (1 Gbit) Interface: 1× Gigabit Ethernet Port (PoE In) 1× Reset Button 1× DC Jack Power Supply: 802.3af/at PoE 24-57 V Passive PoE (+4,5pins; -7,8pins) 12 V ? 1A DC Power Consumption Idle: 4 W PoE Max: 11 W DC Max: 7.5 W Dimensions: 232×232×57.1mm Antenna Type: 4× Internal Omni-directional Antennas Mounting: Ceiling/Wall Mounting (Kit included) Wireless Standards Wi-Fi 5 (802.11ac/n/g/b/a) Frequency: 2.4 GHz and 5 GHz Signal Rate: 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps Channel Width: 20/40/80 MHz Operating Modes: -Wireless Access Point Mode -Wireless Router Mode -Wireless Extender Mode -WISP Mode
