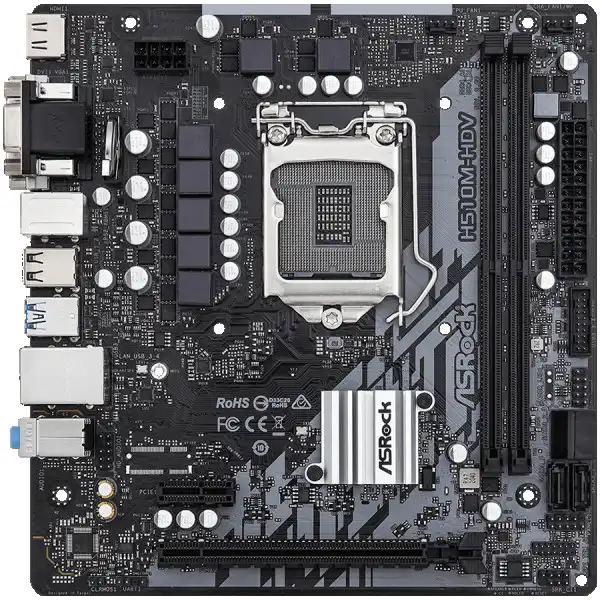

ASROCK Main Board Desktop H510M-HDV (H510, S1200, 2xDDR4, 1xPCIe 4.0x16, 1xPCIe 3.0x1, 4xSATA3, 4xUSB3.2 Gen1, VGA, DVI-D, HDMI, GLAN, mATX
Šifra: 39574
- Proizvođač: ASRock
- Proizvod iz grupe: Matične ploče
Garancija 24 meseci
Proizvod je na stanju
8.722,00 din.
- Chipset
- Intel H510
- Supports Central Processor Unit
- Intel 10th Gen Processors
Intel 11th Gen Processors - CPU Socket Standard
- Socket 1200
- Architecture Features
- Intel® Rapid Storage Technology enterprise
Intel Turbo Boost Max Technology 3.0 - CPU Maximum Quantity Supports
- 1
- Memory Type
- DDR4 SDRAM
- Memory Form Factor
- DIMM 288-pin
- Memory Speed
- 2133MHz(PC3-17066)
2400MHz(PC4-19200)
2666MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3200MHz(PC4-25600) - Maximum Installable System Memory Storage Capacity
- 64 GB
- Memory Slot Total Quantity
- 2
- Provides Error Checking Method
- non-ECC
- Memory Features
- Two DDR Channels
Unbuffered
XMP 2.0 - Integrated
- Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4) - Video Controller Integrated
- yes
- Video Chipset
- Intel Iris Xe Graphics
- Audio Integrated
- yes
- Device Location
- Integrated
- Audio Chipset
- Realtek ALC887-VD2
- Audio Output Mode
- 7.1 Channel Surround
- Compliant Audio Standards
- High Definition Audio
- LAN Integrated
- yes
- LAN Chipset
- Realtek RTL8111H
- Data Link Protocol Supports
- Gigabit EthernetFast EthernetEthernet
- PCI Express 4.0 x16
- 1
- PCI Express 3.0 x1
- 1
- DVI
- 1 (DVI-D)
- HDMI
- 1 (HDMI (Type A))
- VGA
- 1 (15-pin D-sub)
- USB 3.2 Gen 1
- 2 (USB 3.2 (type A))
- USB 2.0
- 4 (USB 2.0 (type A))
- LAN
- 1 (RJ-45)
- Audio Interface
- 3 (3.5-mm minijack)
- PS2
- 2
- BIOS Type
- AMI
- BIOS Features
- Multi-language BIOS
SMBIOS 2.7 Support
PXE boot
128Mb AMI UEFI Legal BIOS with GUI Support
ACPI 6.0 Support - Wake upSleep
- Wake on LAN
- Hardware Monitoring
- Chassis Fan Tachometer
CPU Fan Tachometer
System Voltage - Power Connectors Type
- 24+8 pin
- Supported Operating System
- Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit - Cable Included
- 2 x SATA 6Gbs Cables
- Included Accessories
- IO Drive
Quick Start Guide
Screws
Driver CD - Form Factor
- Micro ATX
- Height (mm)
- 188 mm
- Width (mm)
- 197 mm
- Warranty Products Returnable
- Yes
- Warranty Term (month)
- 24 month(s)
- Warranty validation Criteria
- Serial Number
- Pack Weight Brutto (kg)
- 0.3 kg
- Pack Weight Netto (kg)
- 0.25 kg
- Pieces in pack
- 1
- Box Weight Brutto (kg)
- 0.3 kg
- Retail Packaging Net Weight Carton
- 0.25 kg
- Retail Packaging Net Weight Plastic
- 0.25 kg
- Packs in Box
- 1
- Package Type
- Retail
