A-VGA-AV-Mini ** Gembird input VGA to AV (905) (560)
- Proizvođač: Gembird
- Proizvod iz grupe: VGA kablovi

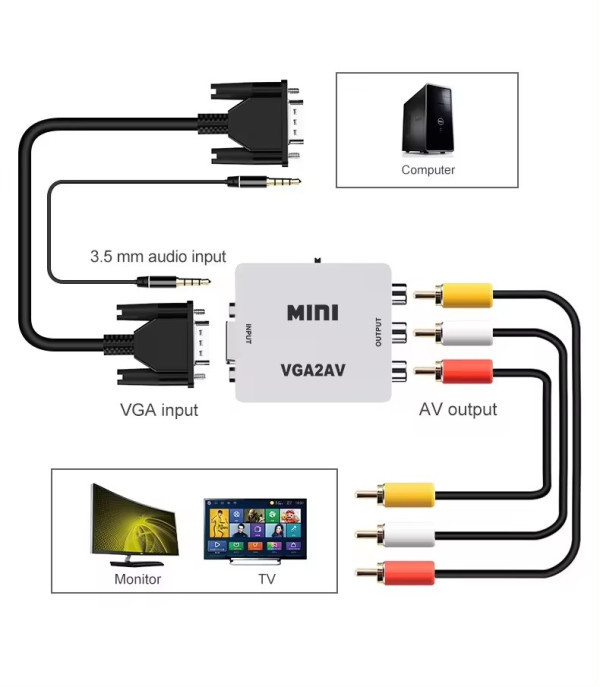

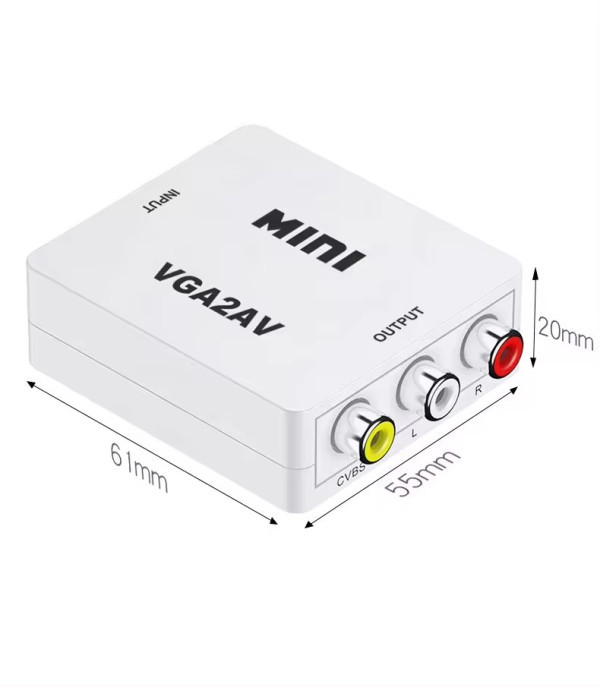

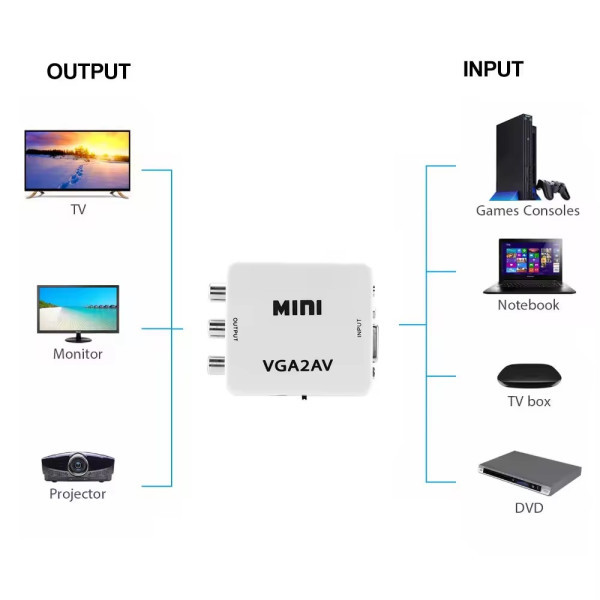

VGA2AV 1. Automatically detects and converts PC input images to NTSC, PAL. 2. Support high resolution PC input up to SXGA (@ 60Hz). 3. Support resolution: 640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps 1280x720 at 60 fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps; 1360x768 at 60 fps; 1400x1050 60 fps; 1440x900 60 fps; 1680x1050 at 60 fps; 1600x1200 60 fps; 1920x1080 60 fps; Specifications 1. Frequency Bandwidth 165 MHz 2. Input Port 1 x VGA 3. Output Port 1 x AV 4. USB power supply source 5. ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± kv (contact discharge) 6. Operating Temperature 0 ° C ~ 40 ° C / 32 ° F ~ 104 ° F 7. Storage Temperature -20 ° C ~ 60 ° C / -4 ° F ~ 140 ° F 8. Relative Humidity 20 ~ 90% RH (Non-condensing) 9. Power Consumption (Max) 2.5 W (Max) 10. Dimensions (mm) 61 (D) x 55 (W) x 20 (H) 11. weight (g) 80
